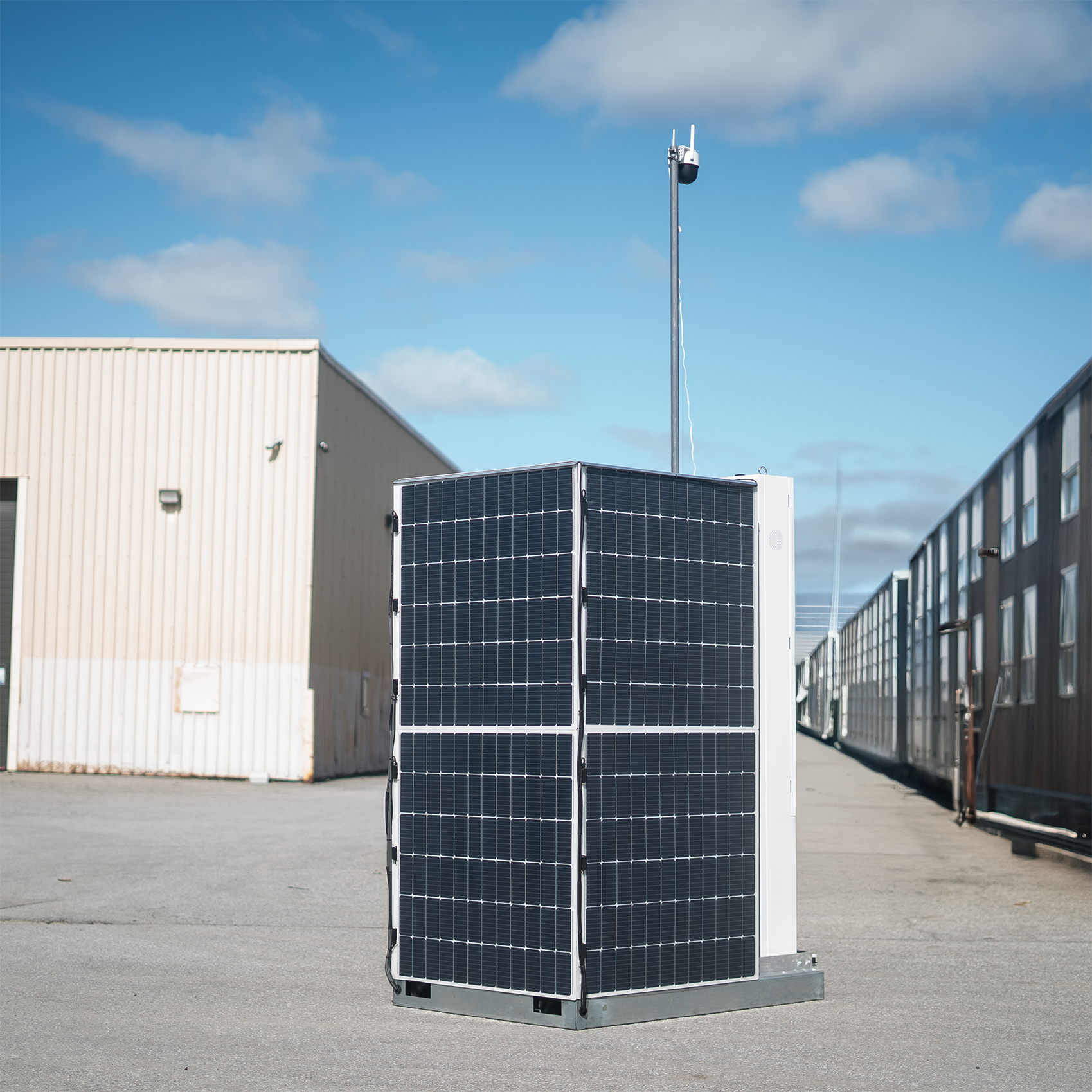

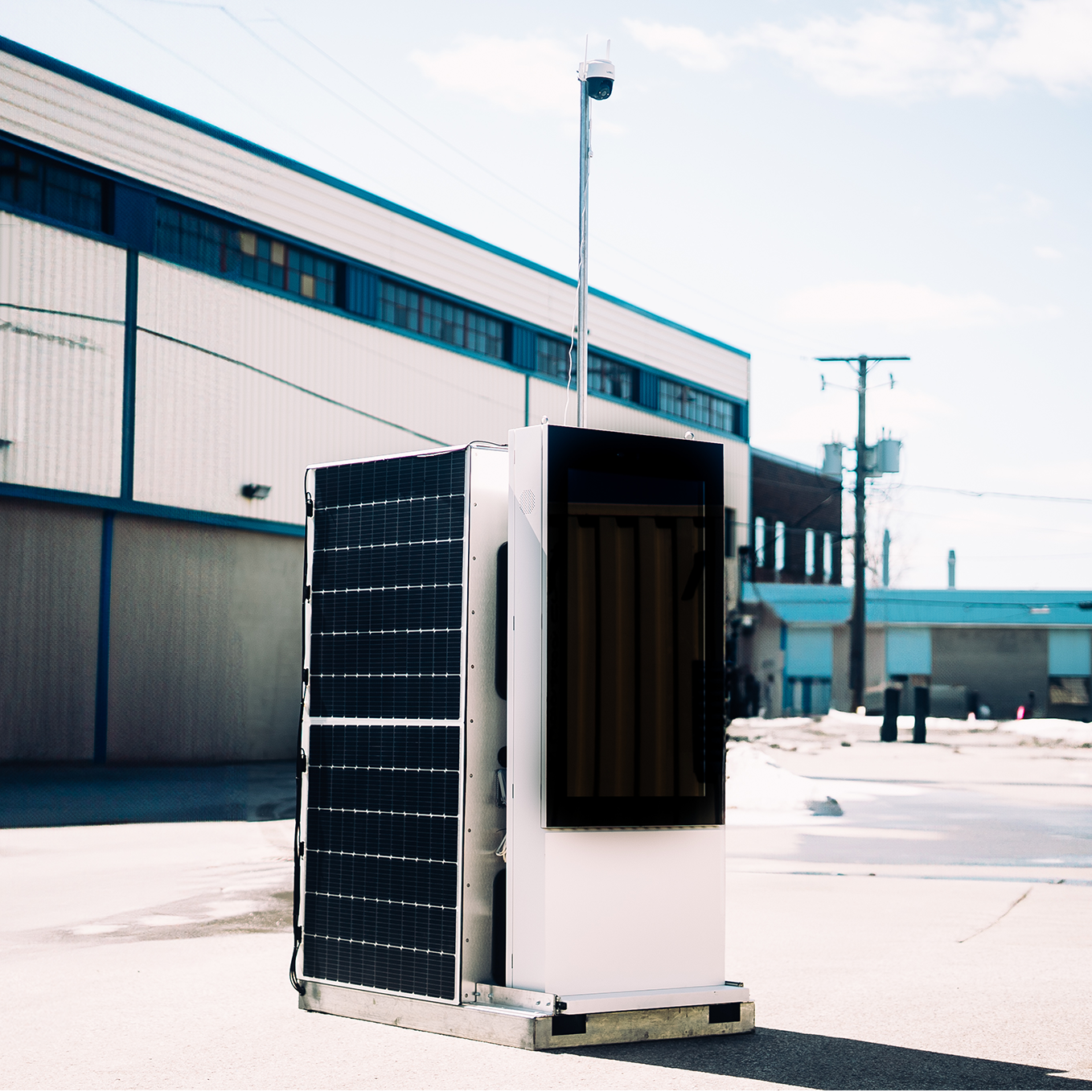

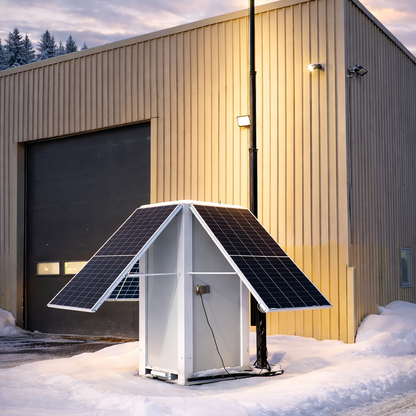

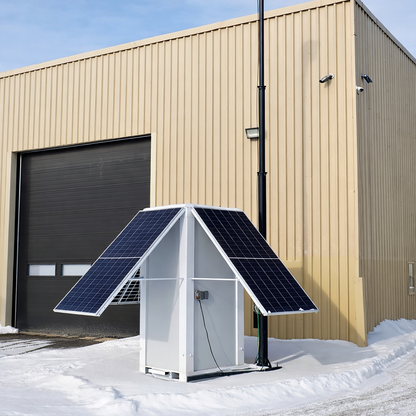

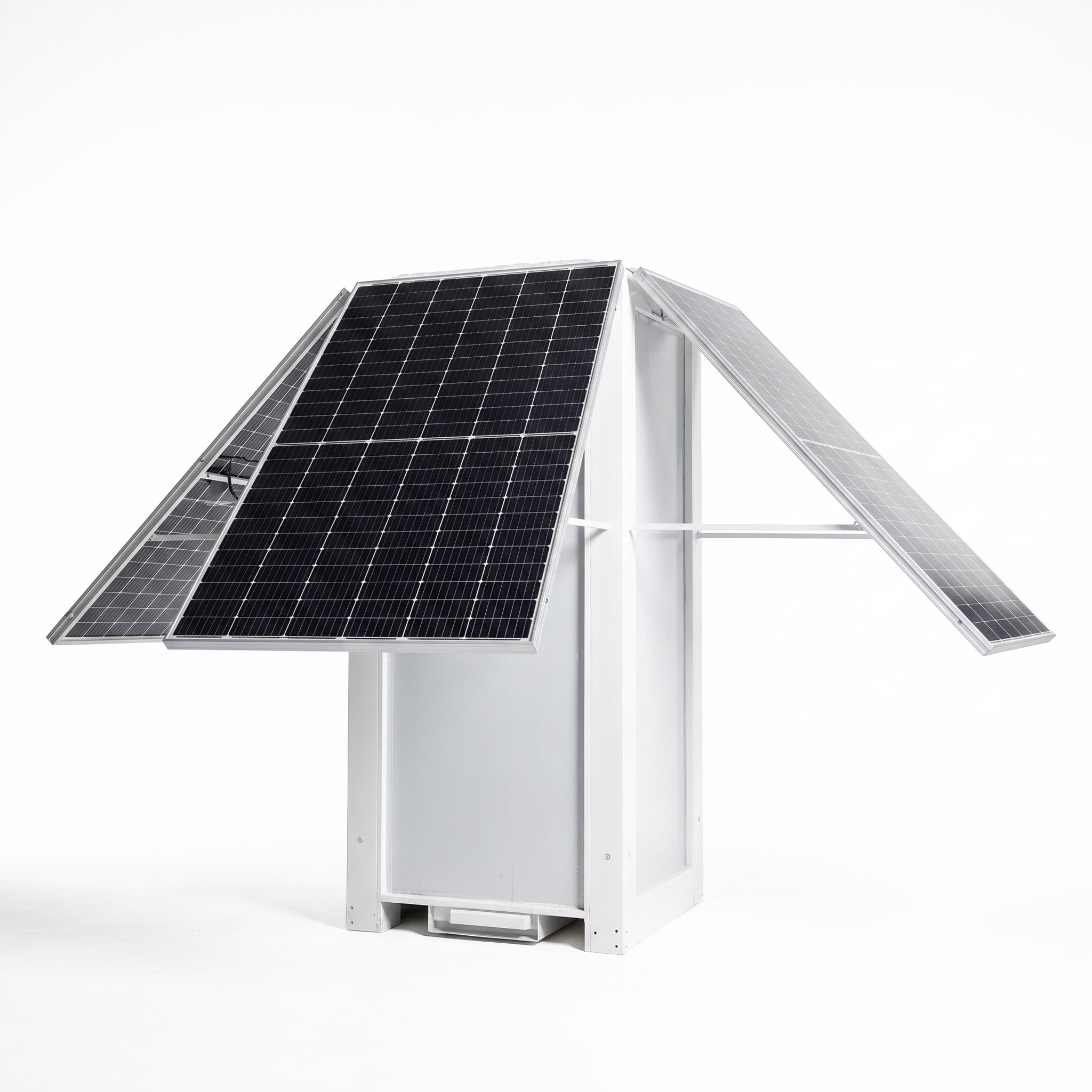

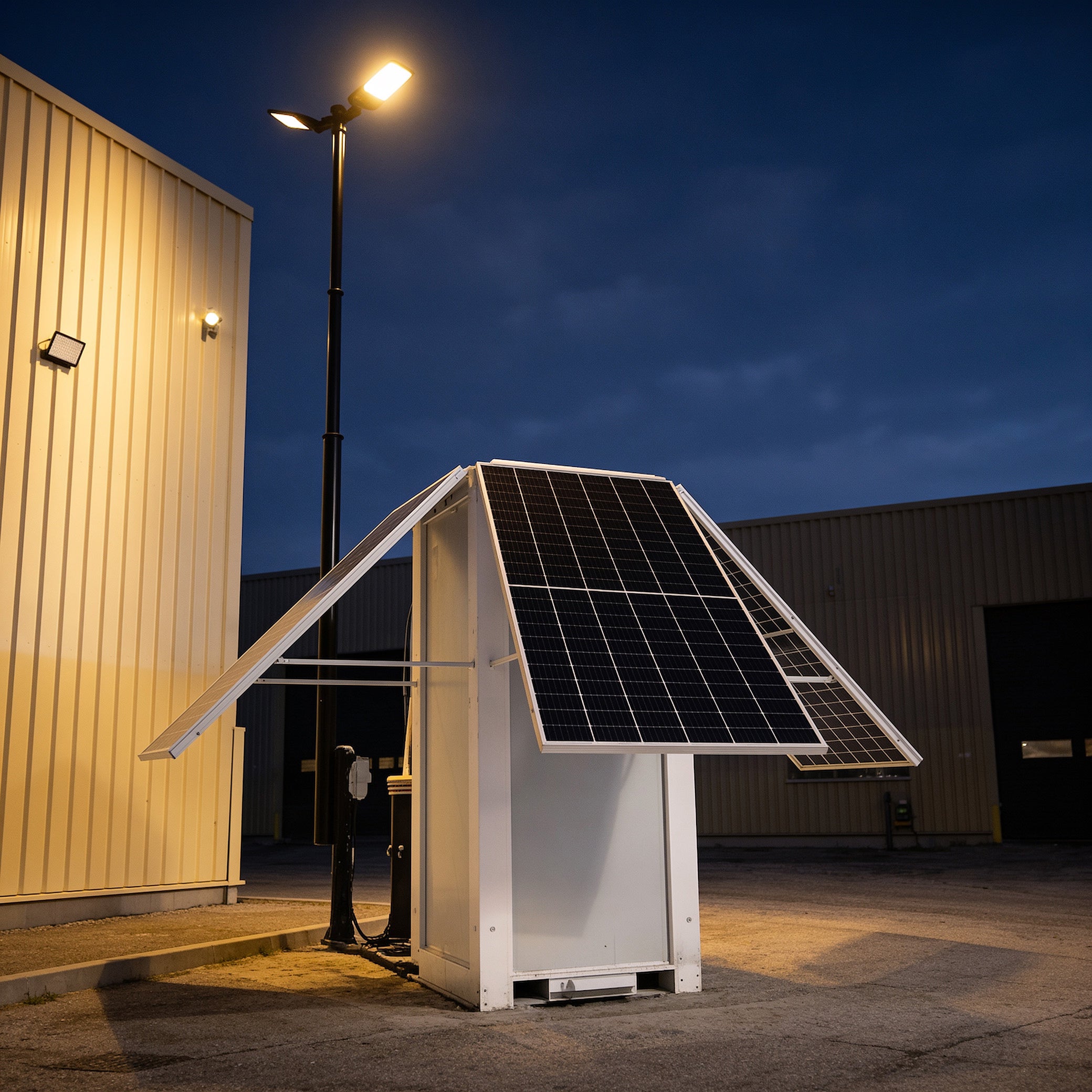

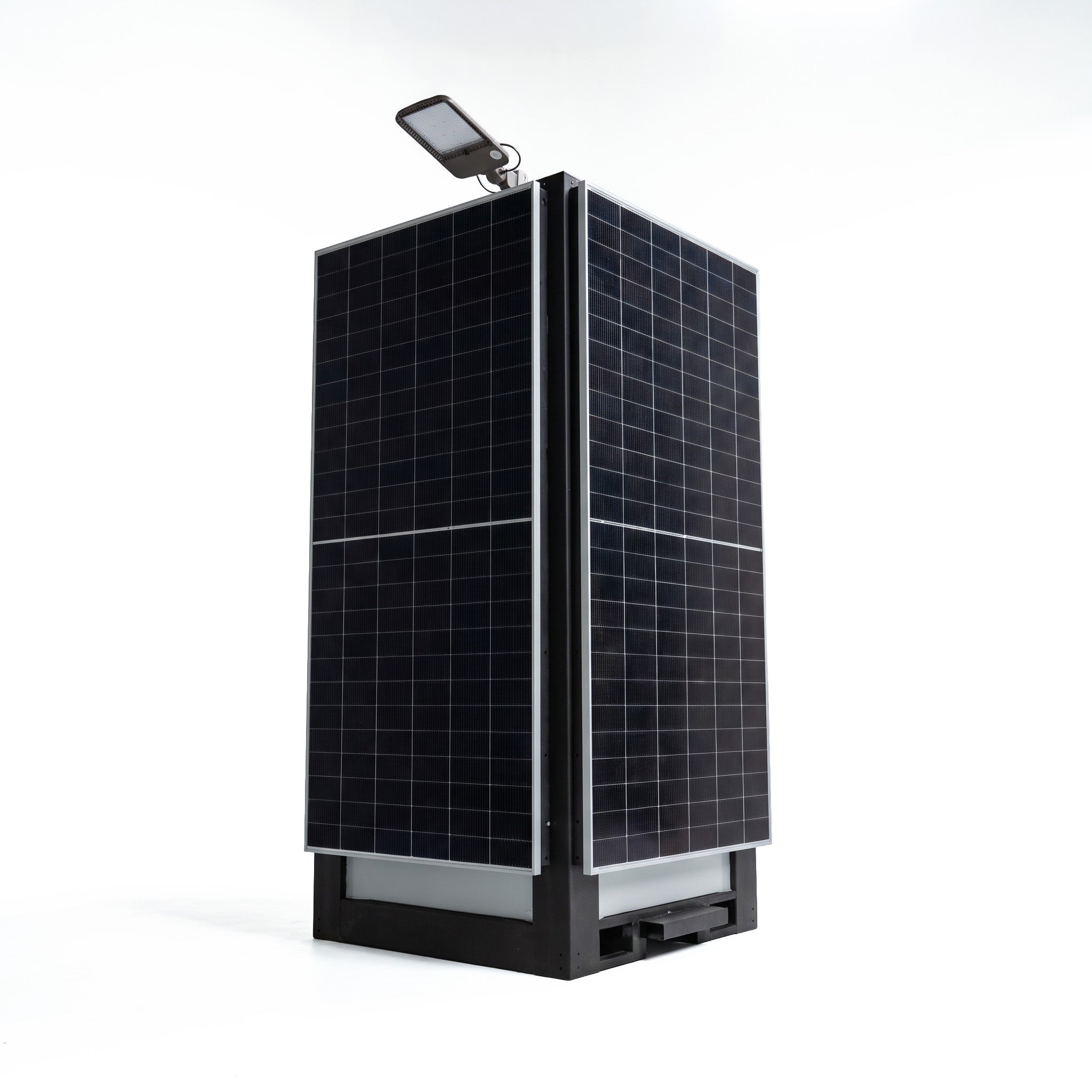

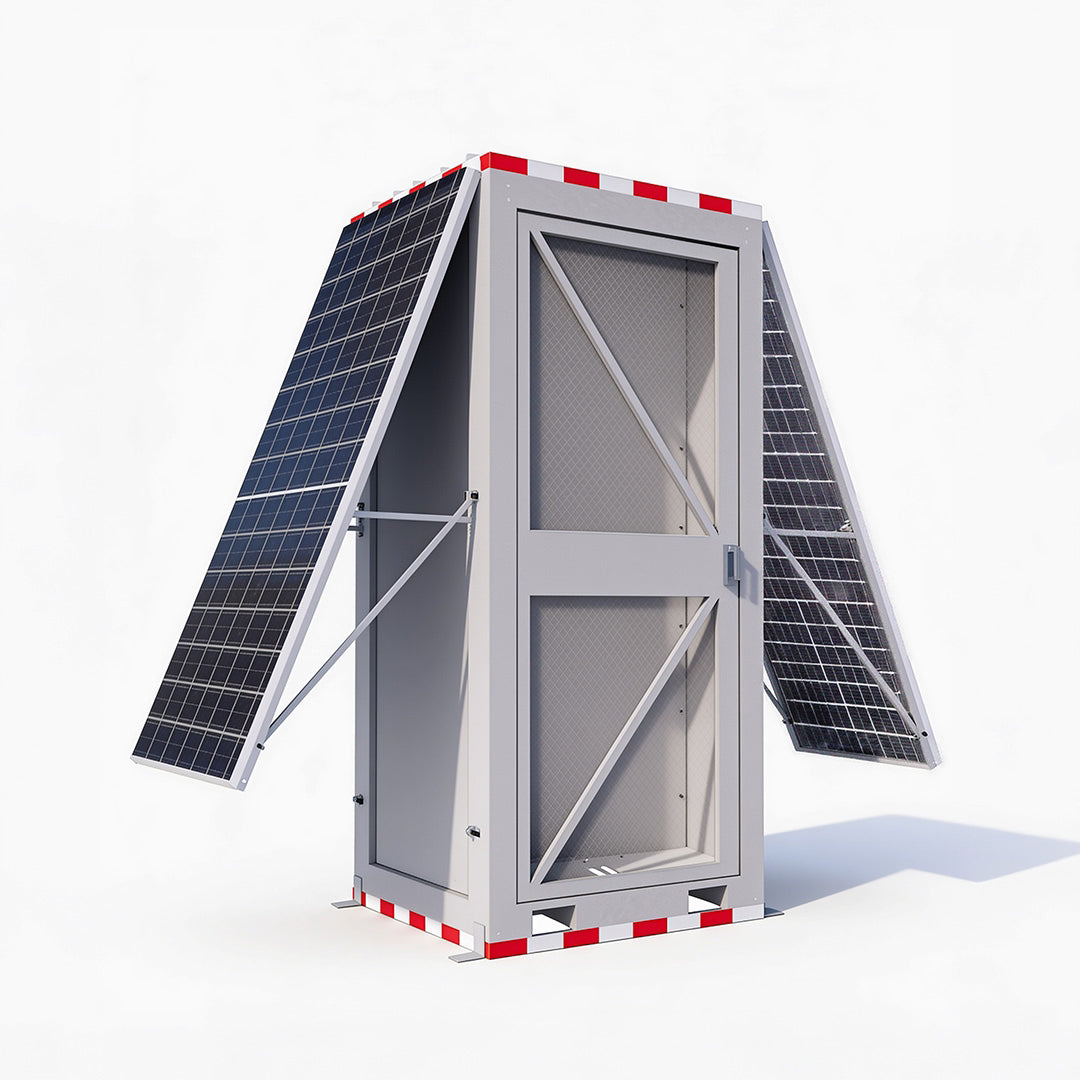

Li-Cube Security with 1800W of Solar Panels
The Li-Cube Security is a compact, Canadian-engineered autonomous power unit built for surveillance, telecom, lighting, and remote monitoring. It provides 1,800 W of solar power using three Elios 600 W bifacial panels, each installed on a galvanized steel 30° adjustable mount for optimal solar performance year-round.
Energy is managed by Victron SmartSolar MPPTs, while the Cerbo GX + GX Touch provides complete on-site and remote monitoring. The enclosure features 2-inch polyurethane insulation (R-13), a commercial-grade locking steel door, and an interior metal wire mesh security door for added protection and airflow.
Designed for rapid deployment and long-term reliability, the Li-Cube Security is ideal for security cameras, sensors, communication equipment, and remote site infrastructure.
Every Security unit is configured to your site, cameras and monitoring loads. Book a consultation and our engineers design the system with you.
Optimized solar placement
Three panels. Three orientations. Continuous coverage.
East
Morning capture
1 panel on a 30° adjustable galvanized mount captures first light.
South · Roof
Peak production
1 panel angled for maximum midday yield.
South · Wall
Evening extension
1 panel keeps producing into the evening.
Engineering deep dive
What's actually inside the box.

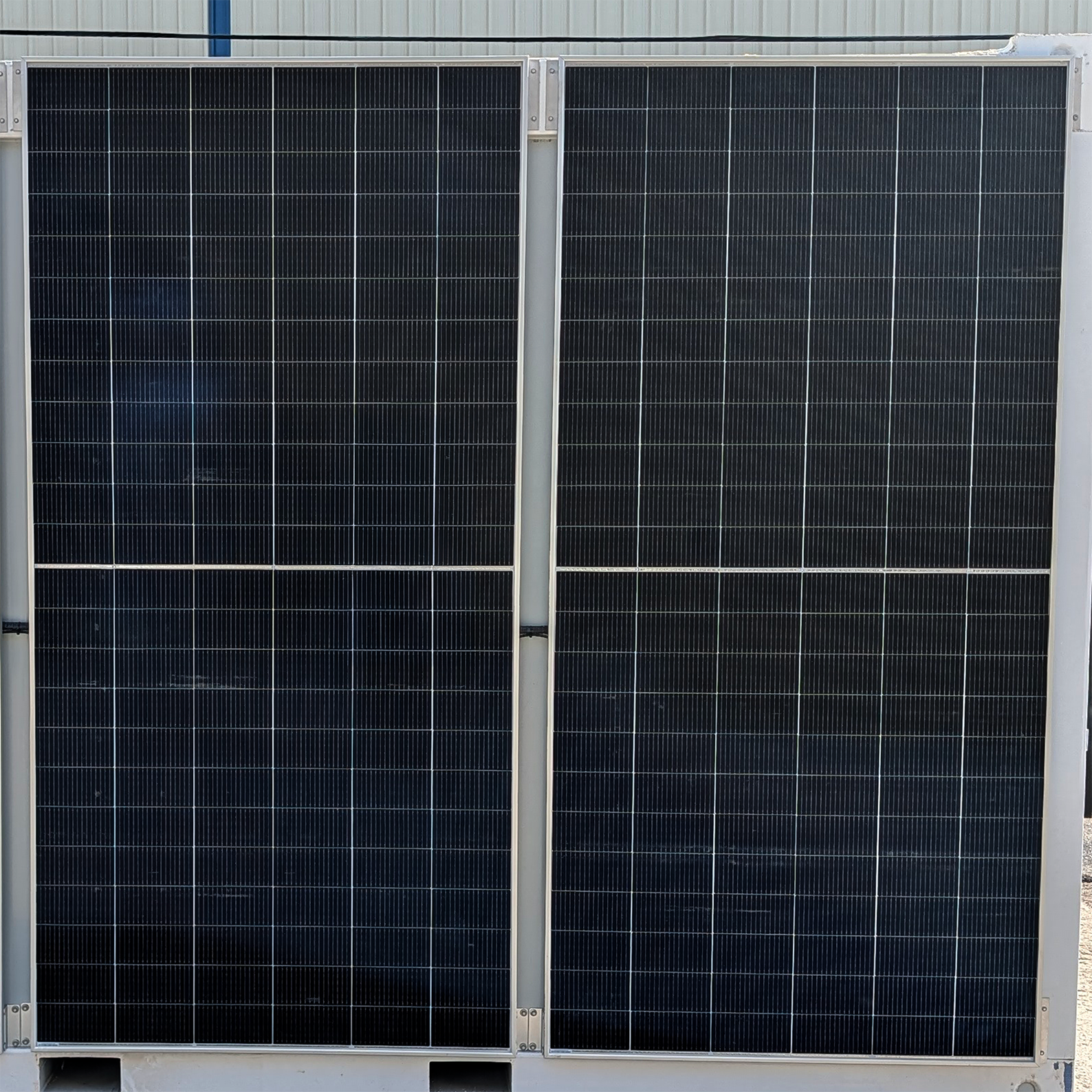

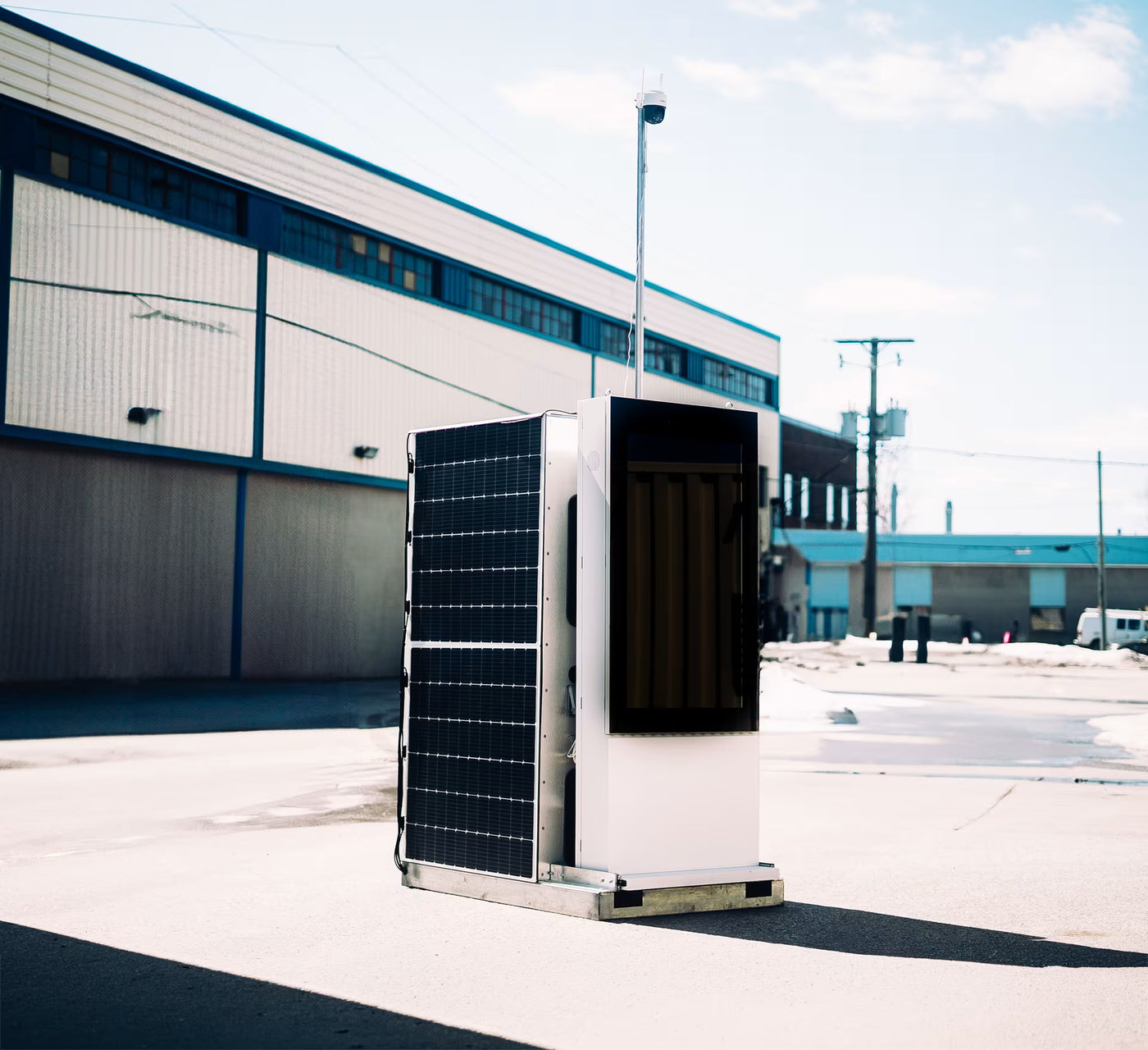

1,800 W Bifacial Solar Array

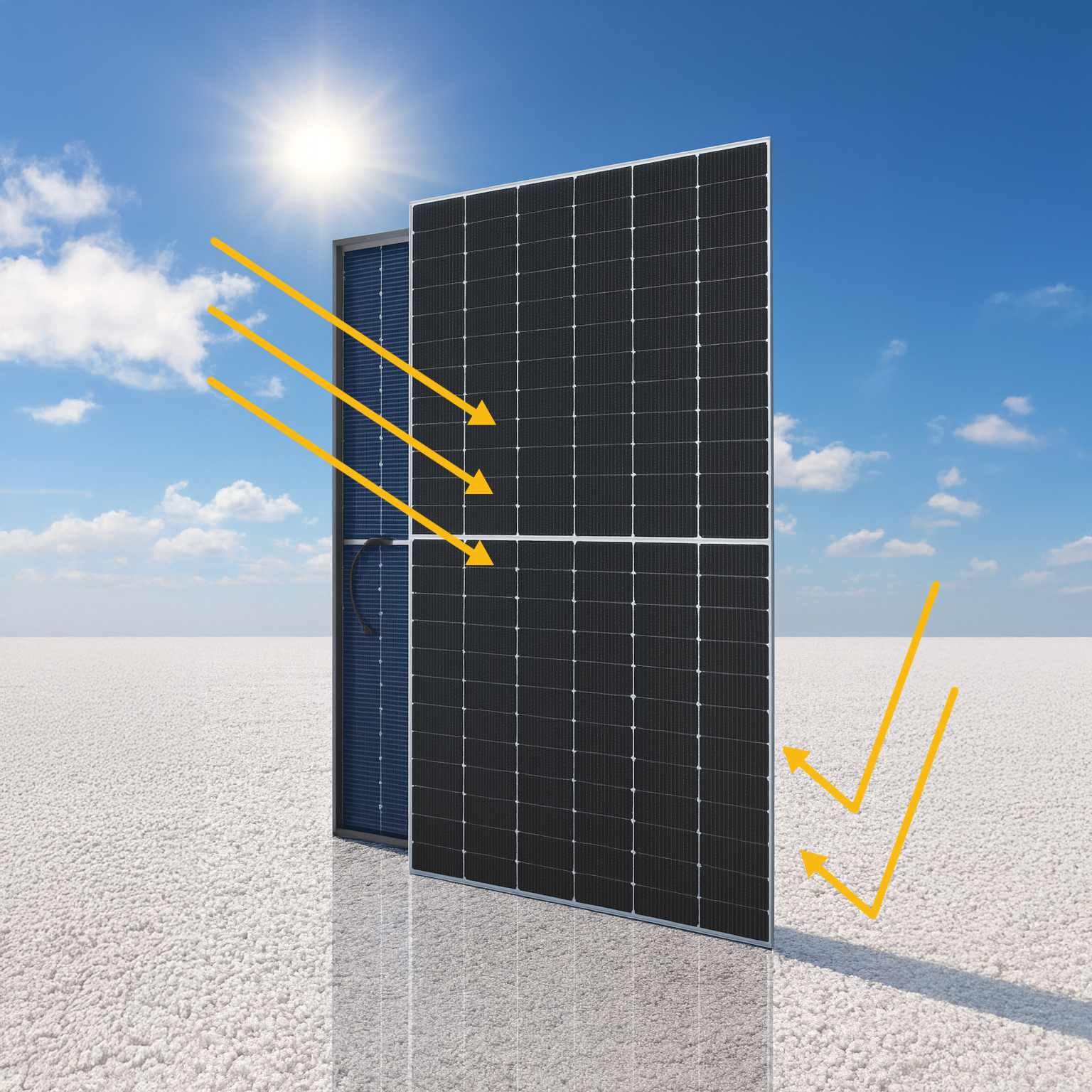

Three Elios 600 W bifacial modules on adjustable galvanized steel mounts deliver efficient, high-density generation, with rear-side solar gain boosting harvest by up to 30% under reflective conditions.

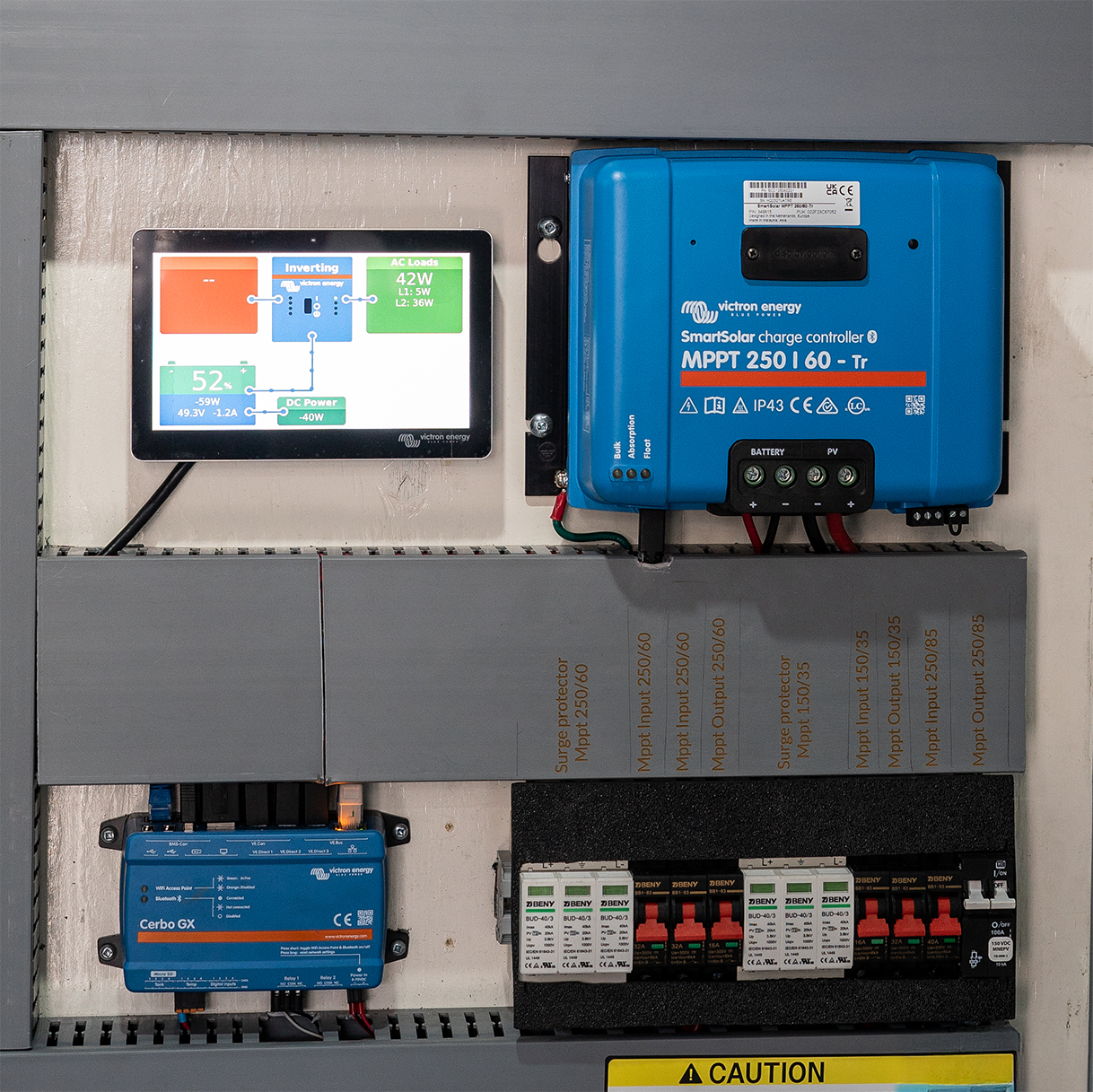

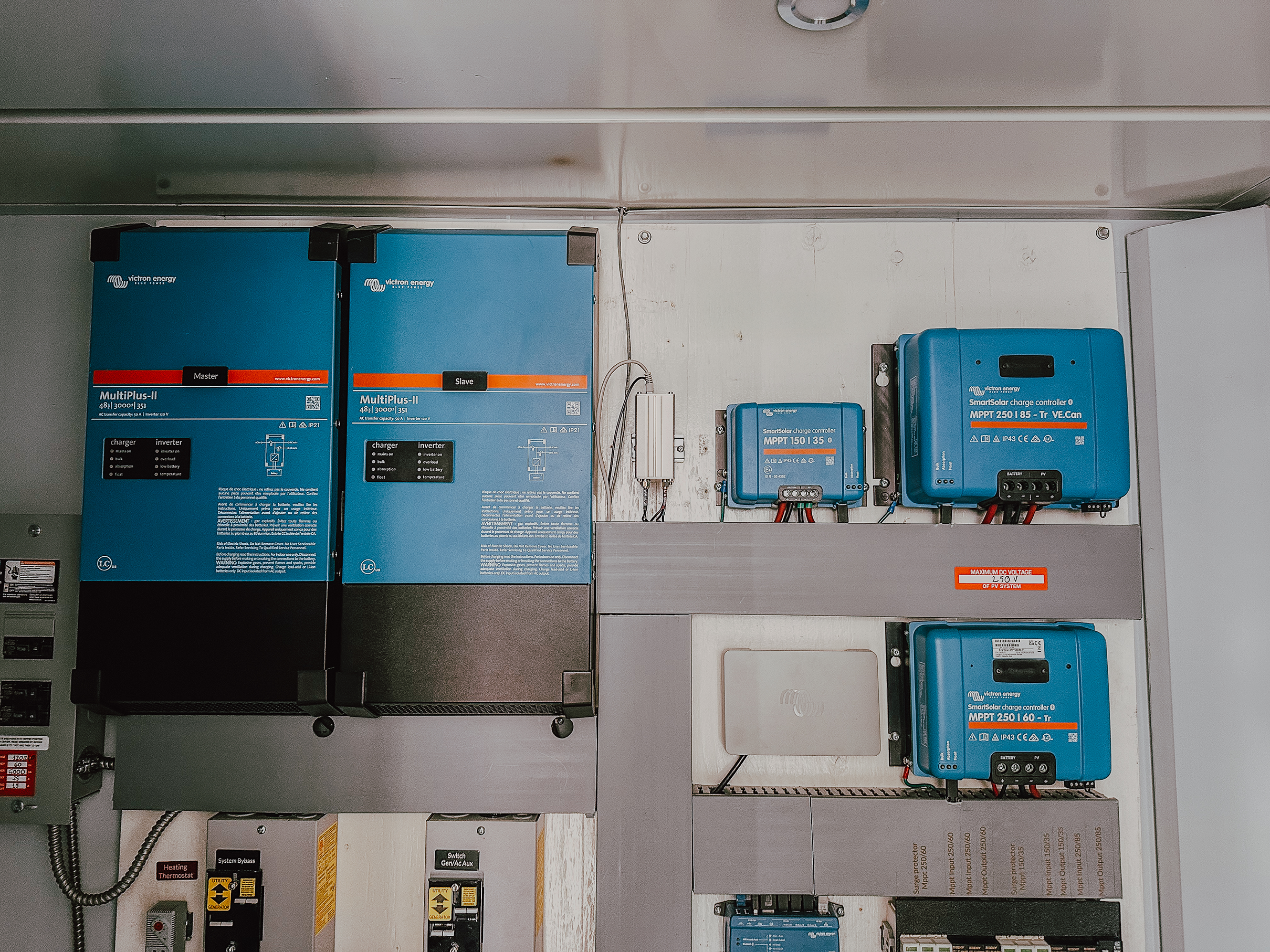

Victron Power Management
Victron power management keeps the system operating efficiently and intelligently, using SmartSolar MPPT controllers to optimize charging and solar harvest as conditions change. Cerbo GX with GX Touch provides on-site viewing; VRM connectivity enables remote monitoring and alerts.

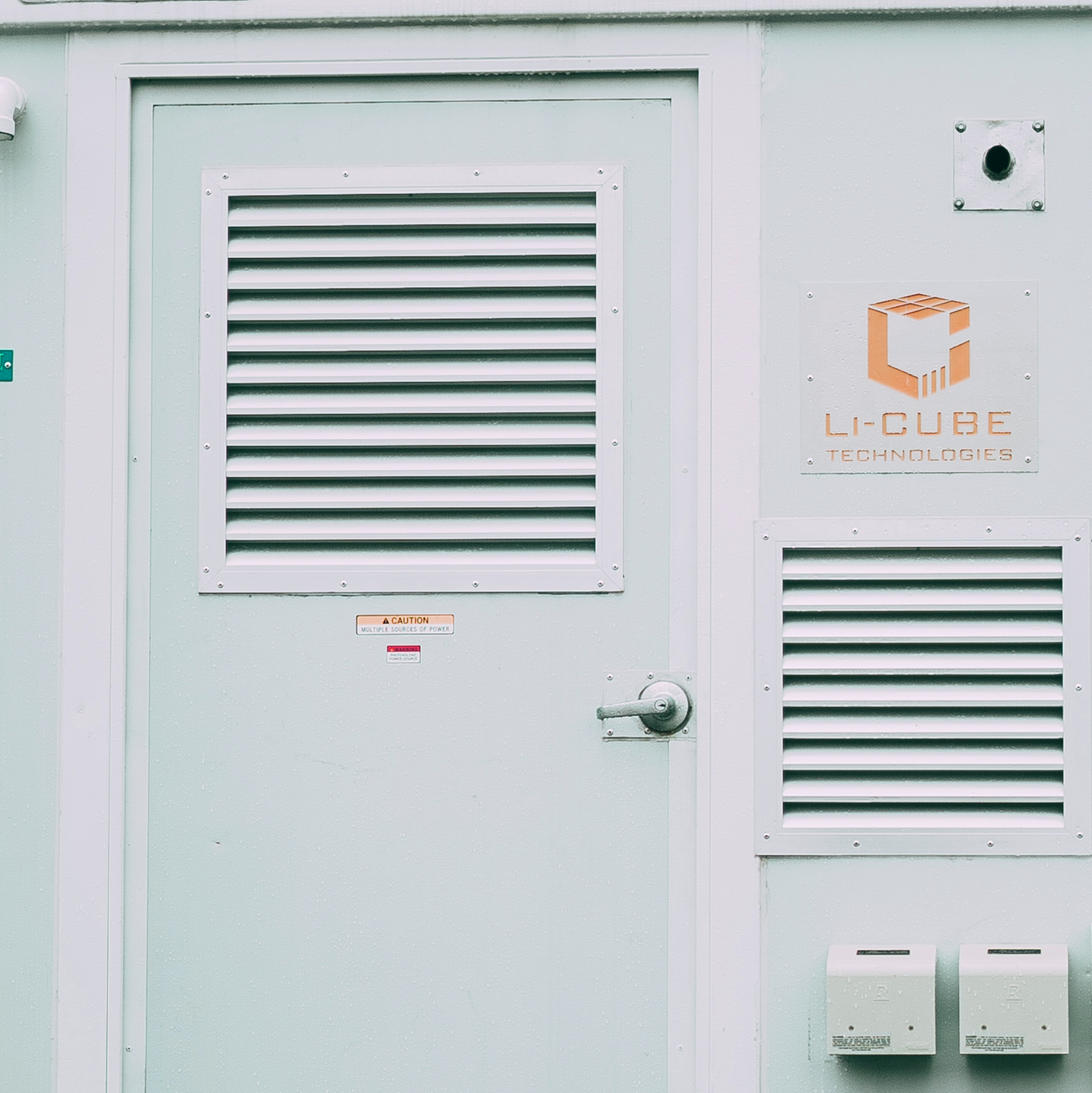

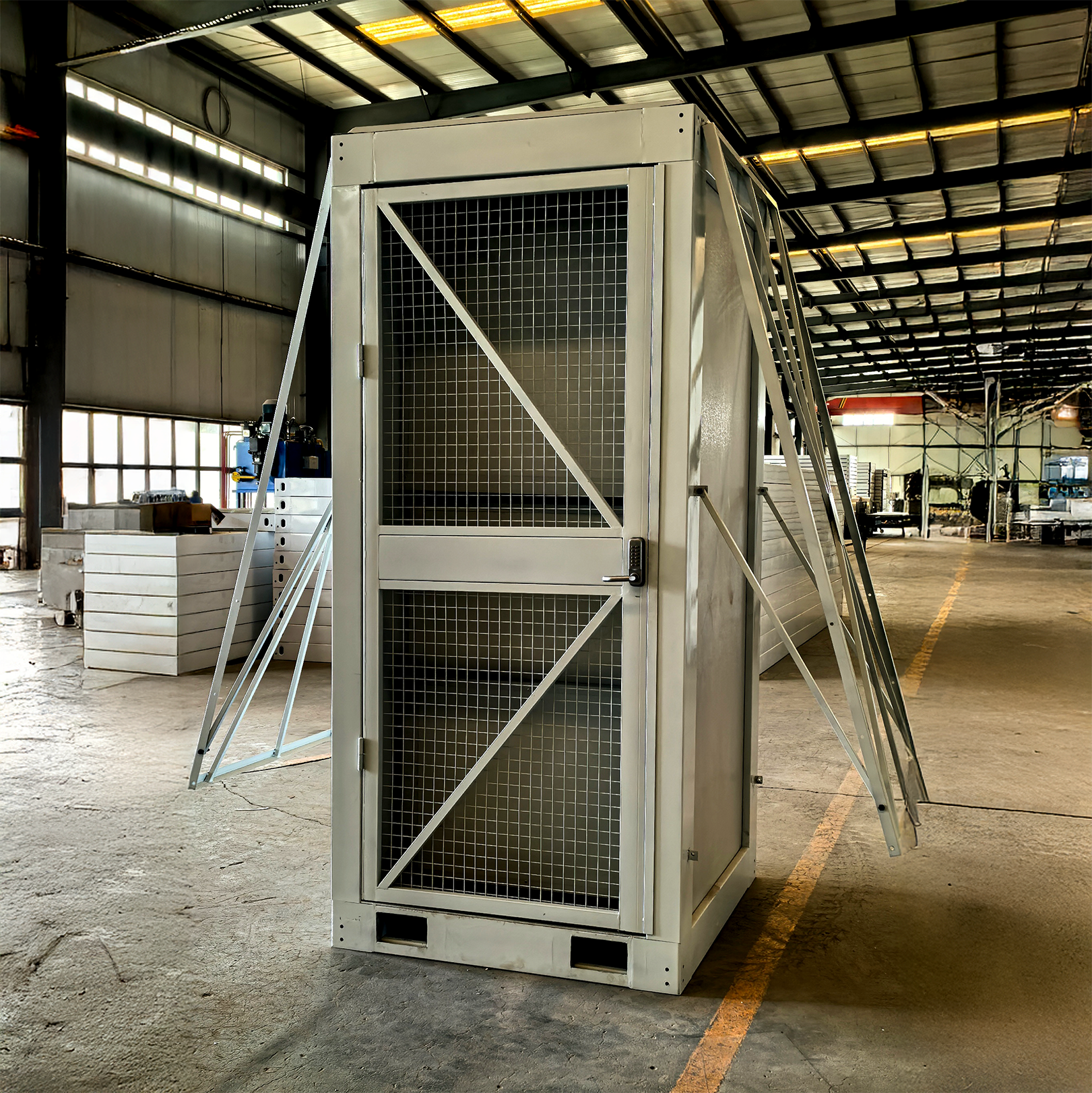

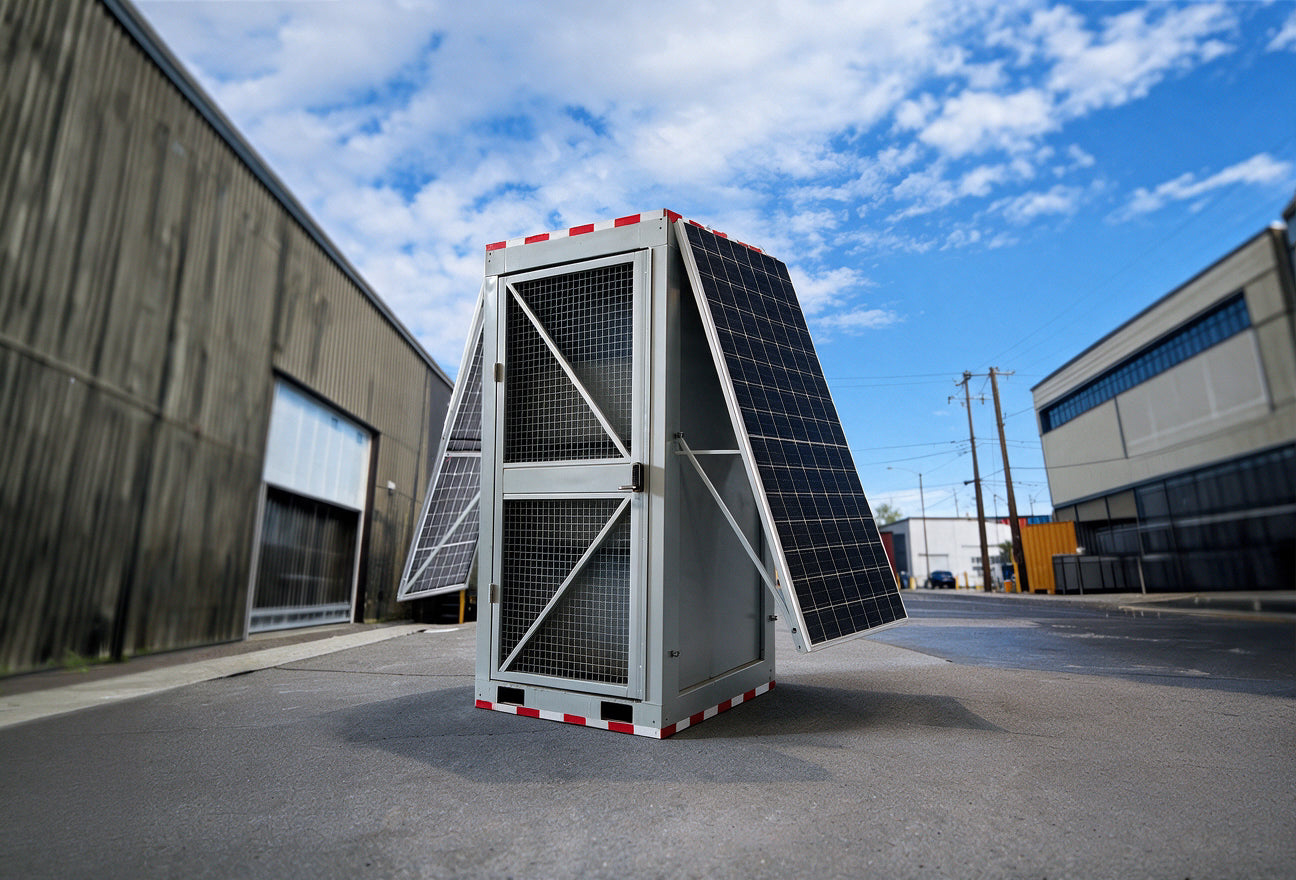

Dual-Security Door System
The dual-security door system adds layered protection without sacrificing airflow, combining a commercial-grade locking steel exterior door with an interior metal wire-mesh door that shields equipment while allowing ventilation.

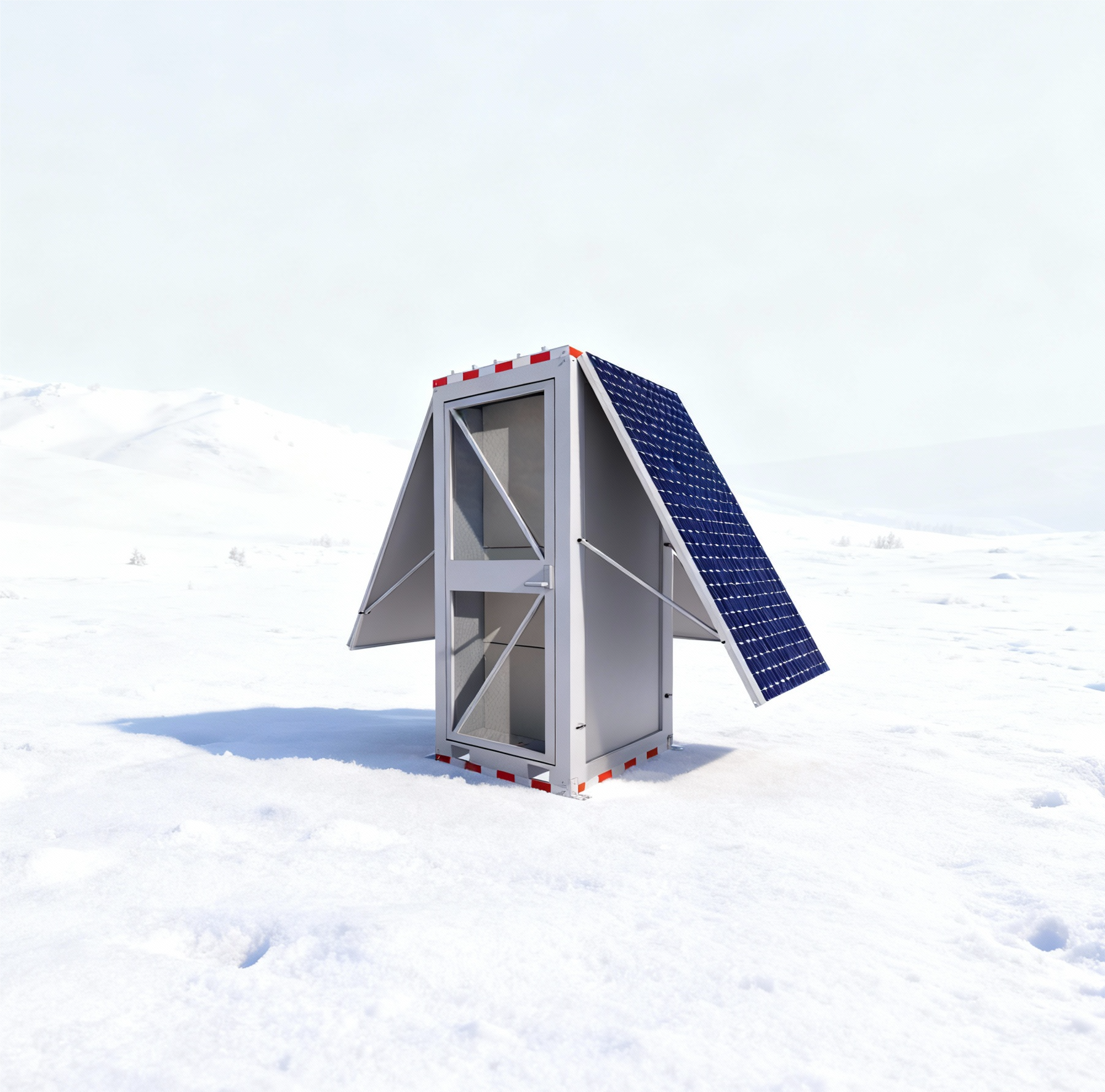

Insulated, Weather-Protected Enclosure
The enclosure is designed to stay insulated and weather-protected in tough environments, with 2-inch polyurethane walls rated at R-13 to help moderate interior temperatures. Powder-coated steel resists corrosion; weather-sealed conduit entries keep cable routing clean.
Technical specifications
The numbers your engineer will ask for.
WHAT'S INCLUDED

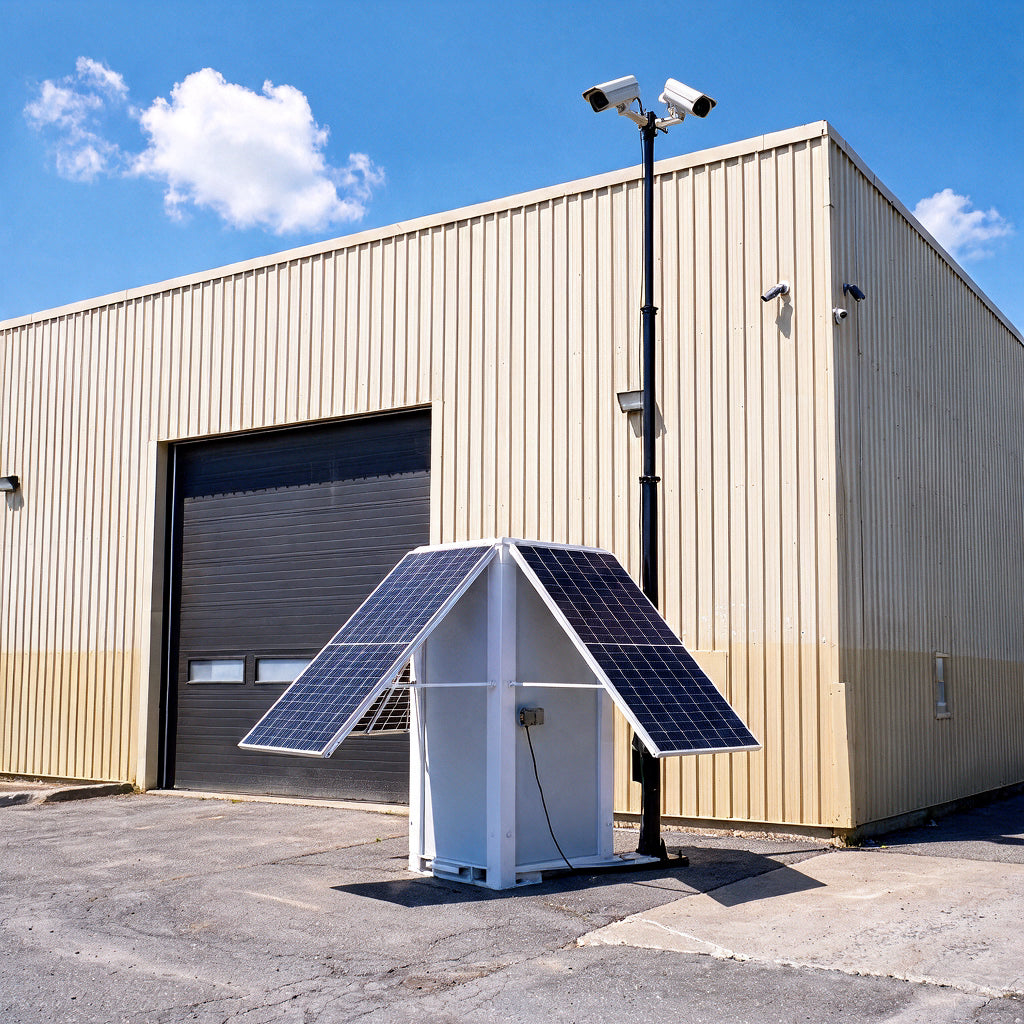

Everything you need, factory-installed.
INTEGRATED & FACTORY-TESTED- 3 × Elios 600 W bifacial panels
- 3 × 30° galvanized adjustable ground mounts
- PV wiring & connectors
- Galvanized fasteners & hardware
- DC protection suite (breakers, fuses, disconnects, surge suppressor)
- Victron SmartSolar MPPT controller(s)
- Victron Cerbo GX
- Victron GX Touch Display
- DC distribution block
- Victron Energy 3,000W Inverter/Charger (per official spec sheet)
- 9,600 Wh to 39,000 Wh battery bank (4 to 16 batteries), configuration-dependent (per official spec sheet)
- Integrated into the Victron 3,000W Inverter/Charger
- All wiring & labeling
- Pre-wired solar electrical system
- 2-inch polyurethane insulation (R-13)
- Weather-sealed conduit ports
- Documentation package
The business case
It pays for itself, then it pays you.
Annual operating cost
Diesel light tower maintenance is quoted two ways: performed in-house it runs about $21,643/yr, or about $28,030/yr if serviced externally. Either way, the Li-Cube Security Hybrid's solar + propane backup cuts that to about $3,172/yr.
5-year cost of ownership

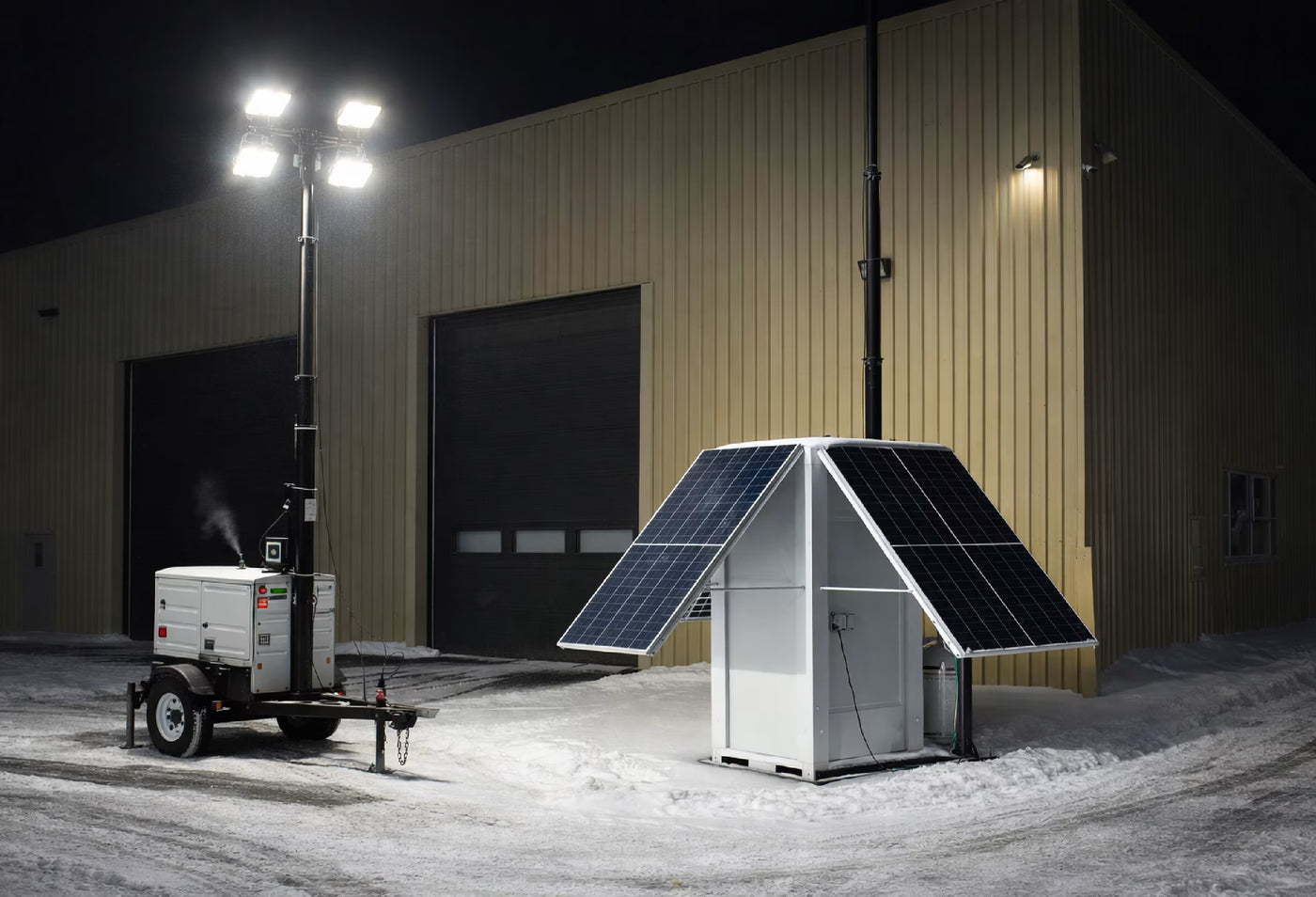

Figures from the Li-Cube Security Hybrid vs Diesel Light Tower comparison (2.5 kW ONAN propane backup + 1.8 kWp solar vs a 6 kW diesel light tower running ~4,300 h/yr). Includes fuel and maintenance; diesel figures shown for both in-house and externally-serviced maintenance. Actual savings depend on your site's operating hours, fuel price and maintenance arrangement.
USE CASES
Built to protect the sites that can't go dark.
Common questions
Before you book the call.
What is the Security unit designed to power?+
How is the equipment protected against tampering or theft?+
Will the mounts and enclosure hold up outdoors year-round?+
How long does delivery take?+
What support is included after delivery?+
Can we monitor it remotely?+
Book a consultation
Tell us about your site. We'll design the system.
Share your site and loads, and our engineering team comes back within two business days with a recommended configuration, budget and delivery timeline.
