Li-Cube Portable Hybrid System

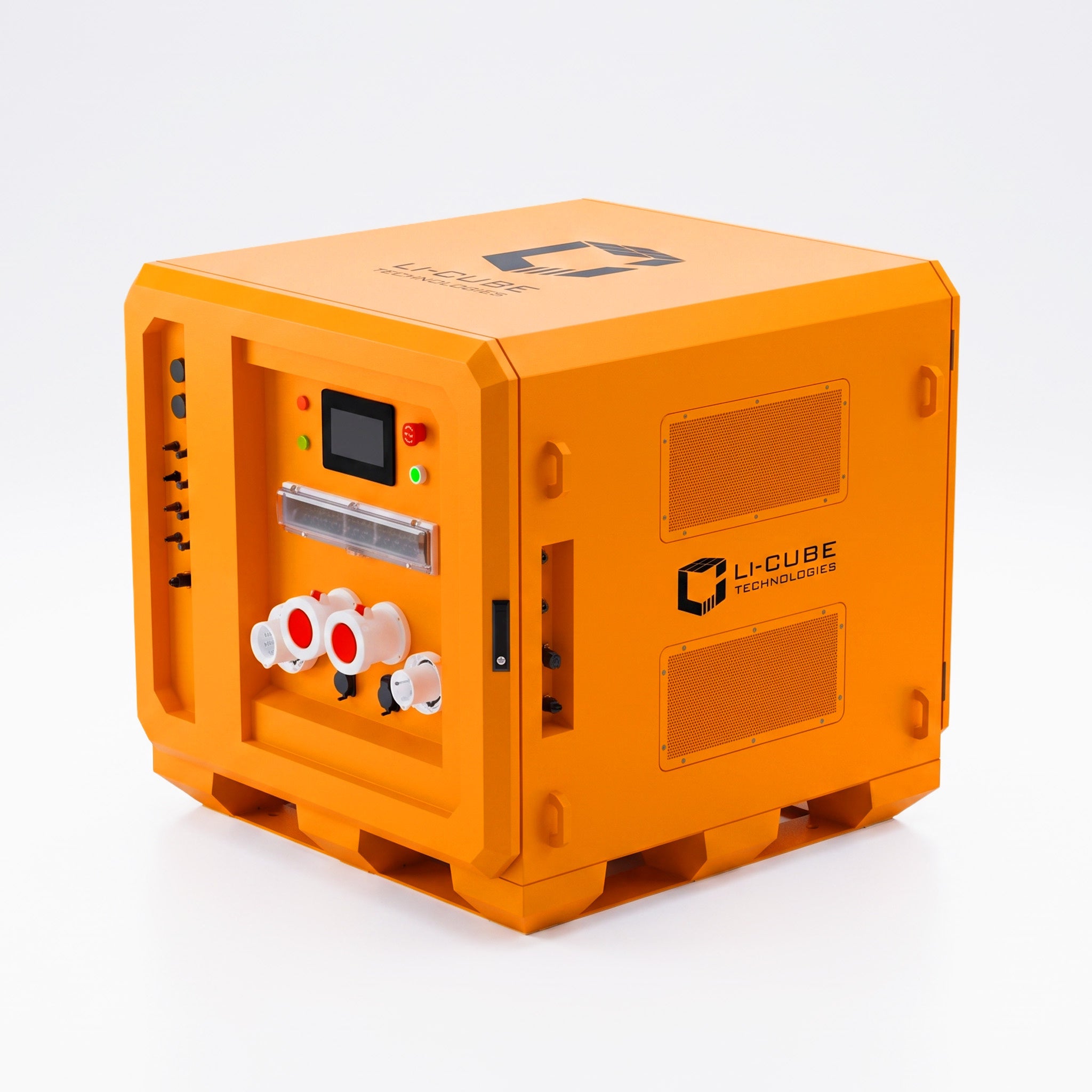

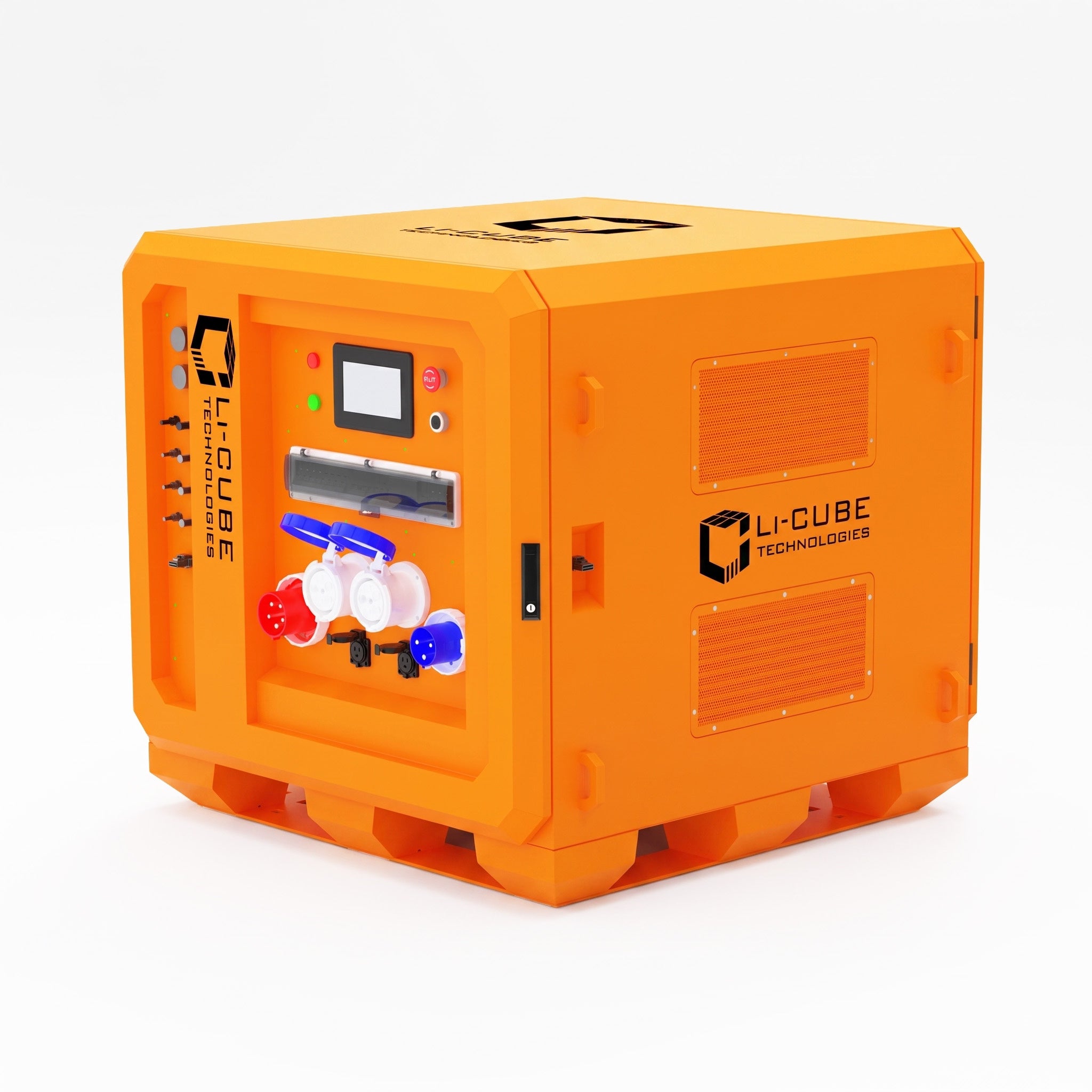

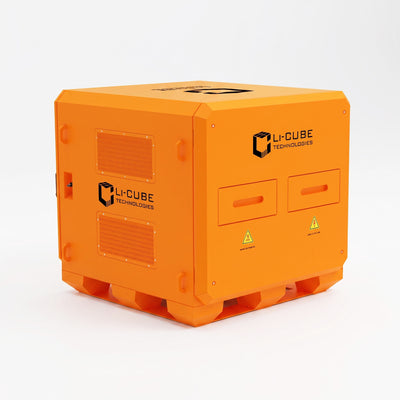

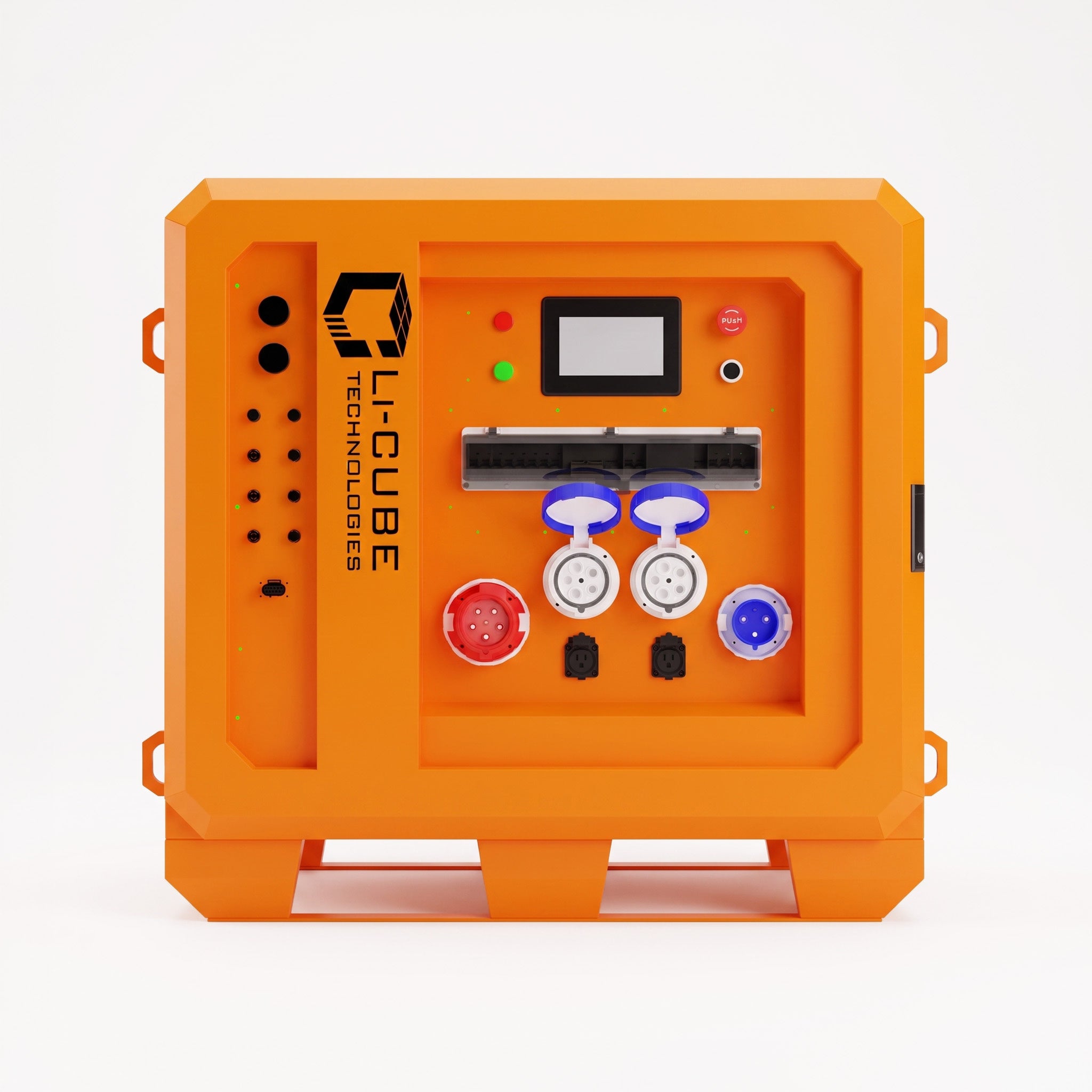

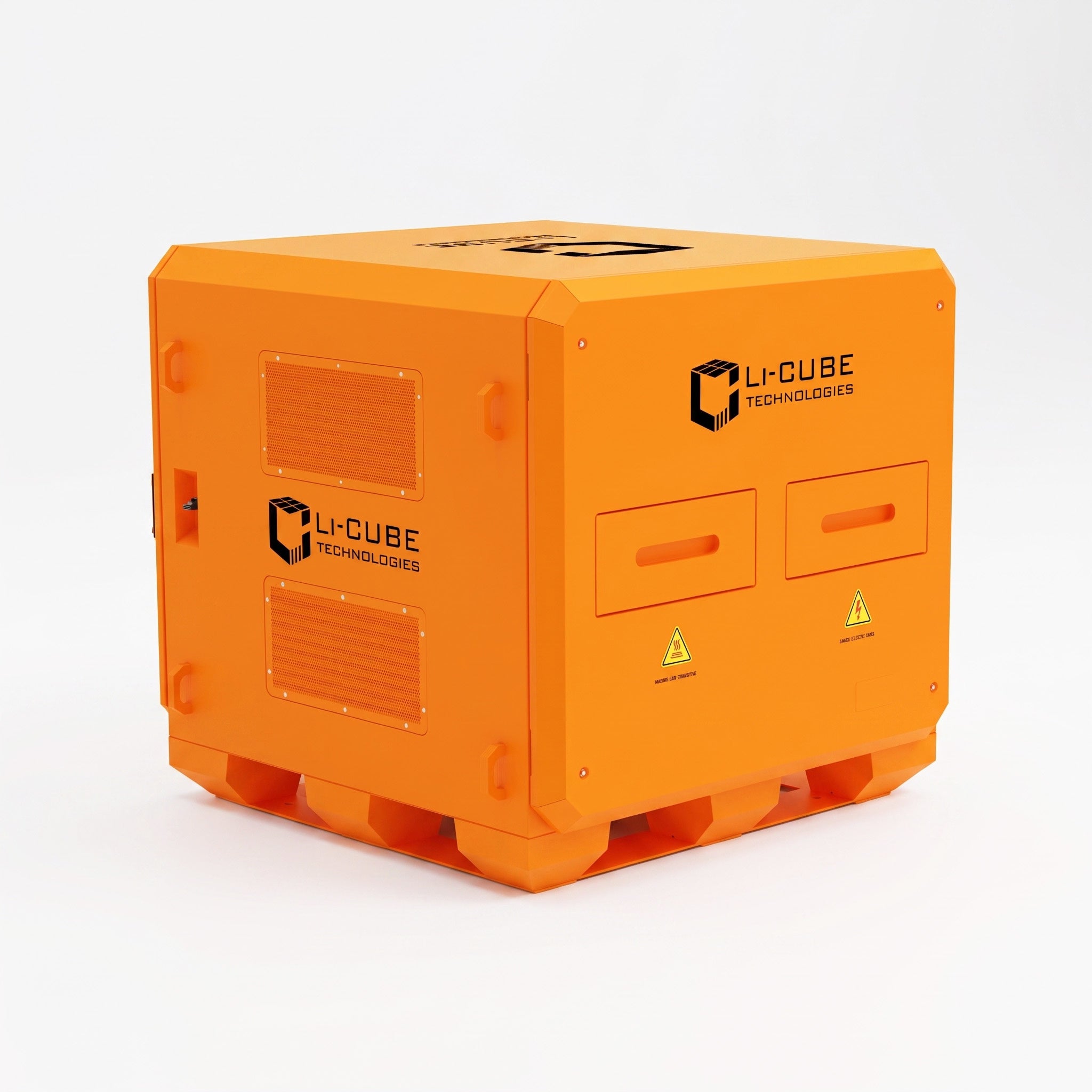

The Li-Cube 1532 Portable is a compact hybrid energy system designed to be paired with a rental diesel generator to drastically reduce fuel consumption, runtime, noise, and maintenance. Instead of running the generator continuously, it stores energy in its 32 kWh lithium battery bank and powers the load silently through its 15 kW inverter, the generator only starts when needed. Built in a rugged, transportable enclosure, it's ideal for construction sites, temporary power, remote operations, events, and industrial sites.

15 kW inverter (PCS)32 kWh lithium batteryUp to 24 kW PV inputDiesel generator readyUL1741 certifiedUp to 90% fuel savings
Up to 90% fuel savingsCOMING SOON

The Li-Cube Portable is sized to your generator and load profile. Book a consultation to see how much fuel and runtime you can save.

Contact Us Full Specifications
Engineered in Québec, Canada
15kW
Inverter (PCS) capacity
32kWh
Lithium battery capacity
24kW
Maximum PV input
90%
Potential fuel savings

Engineering deep dive

What's actually inside the box.

01 / HYBRID OPERATION

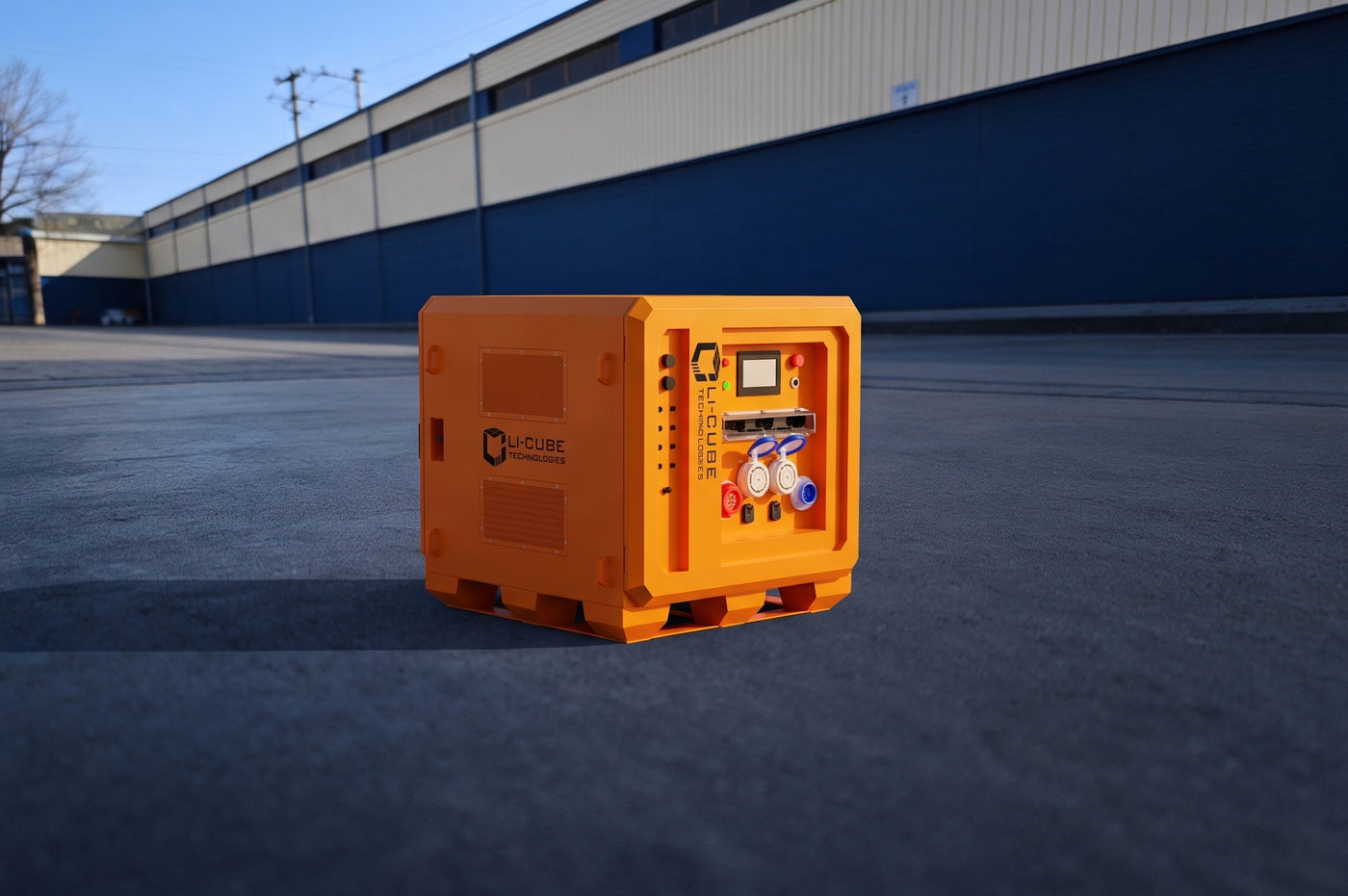

Smart Hybrid Generator Pairing

Instead of running the generator continuously, the Li-Cube1532 stores energy in its 32 kWh lithium battery bank and powers the load silently through its 15 kW inverter. The generator only starts when needed, during heavy load demand or when the batteries are depleted.

90% potential fuel savings, depending on application and load profile
Smart Hybrid Generator Pairing
02 / POWER

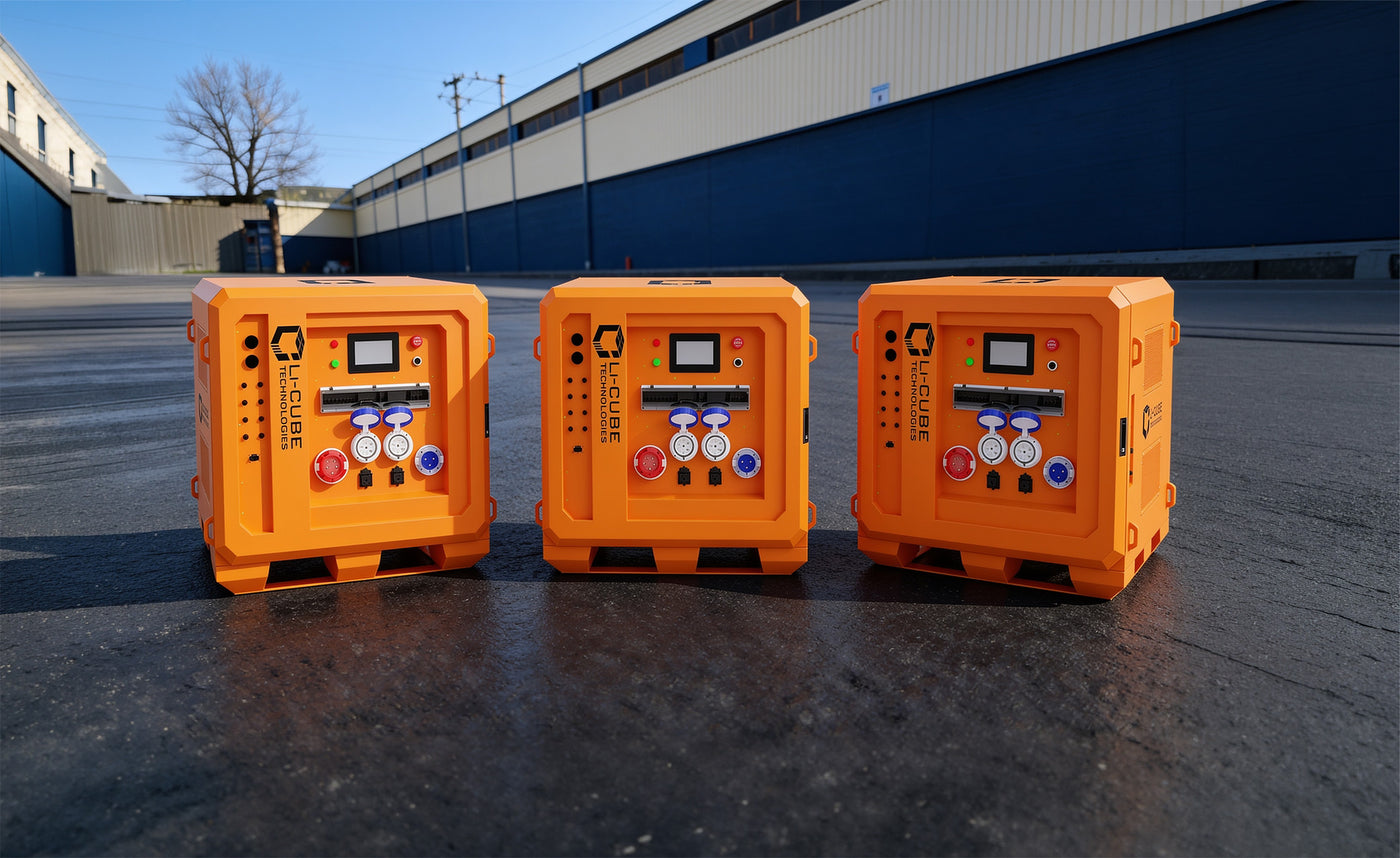

15 kW Inverter / PCS

The 32 kWh lithium battery bank stores solar or grid-charged energy and feeds the 15 kW inverter, with a 3.5 kW onboard charger keeping the bank topped up between generator runs.

32kWh battery capacity in the standard configuration
15 kW Inverter / PCS
03 / STORAGE

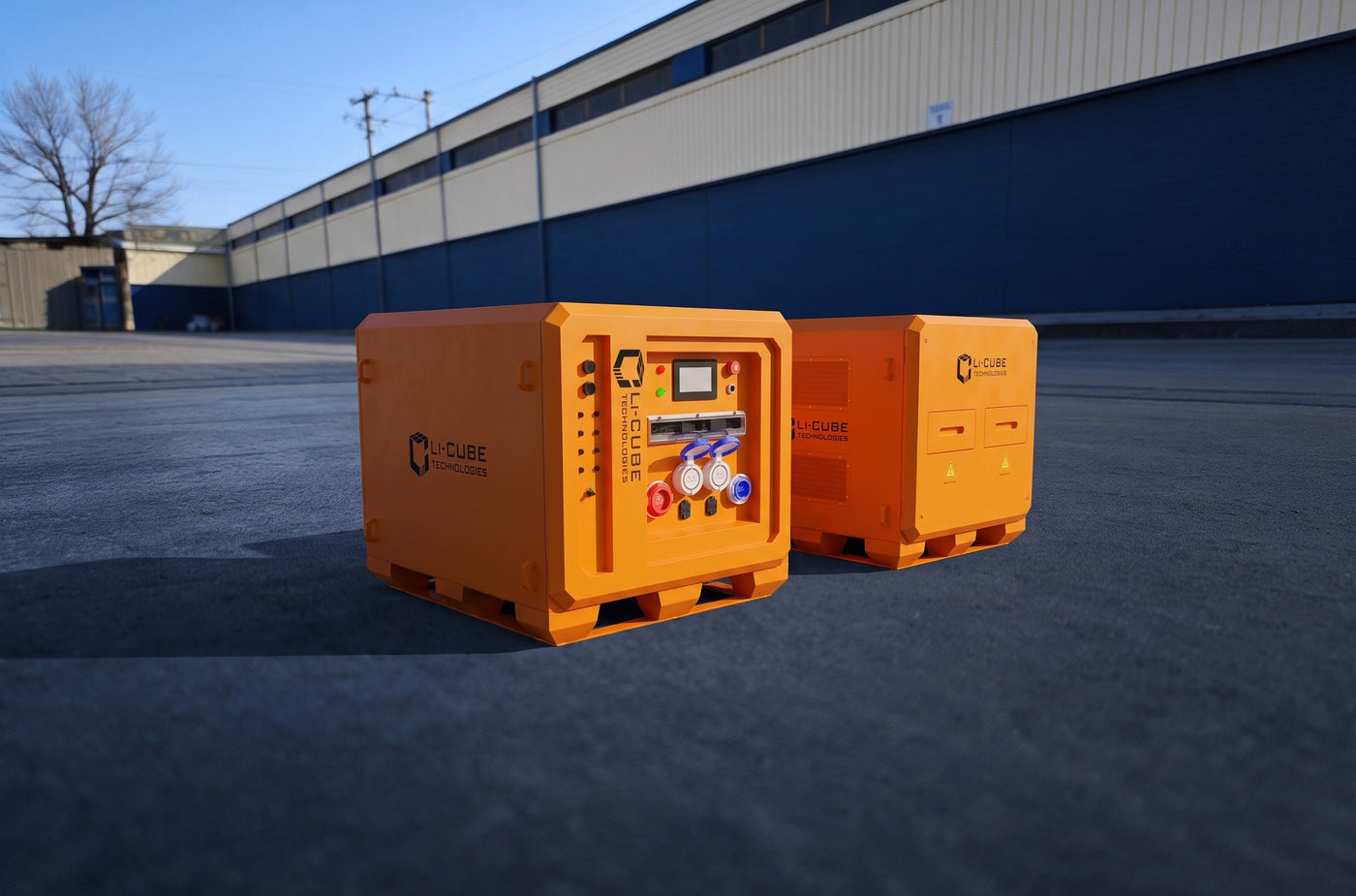

32 kWh Lithium Battery Bank

A 3.5 kW battery charger and up to 24 kW of PV input mean the bank can be replenished from grid, generator or solar, cutting reliance on any single source.

24kW maximum PV input for solar charging
32 kWh Lithium Battery Bank
04 / SOLAR-READY

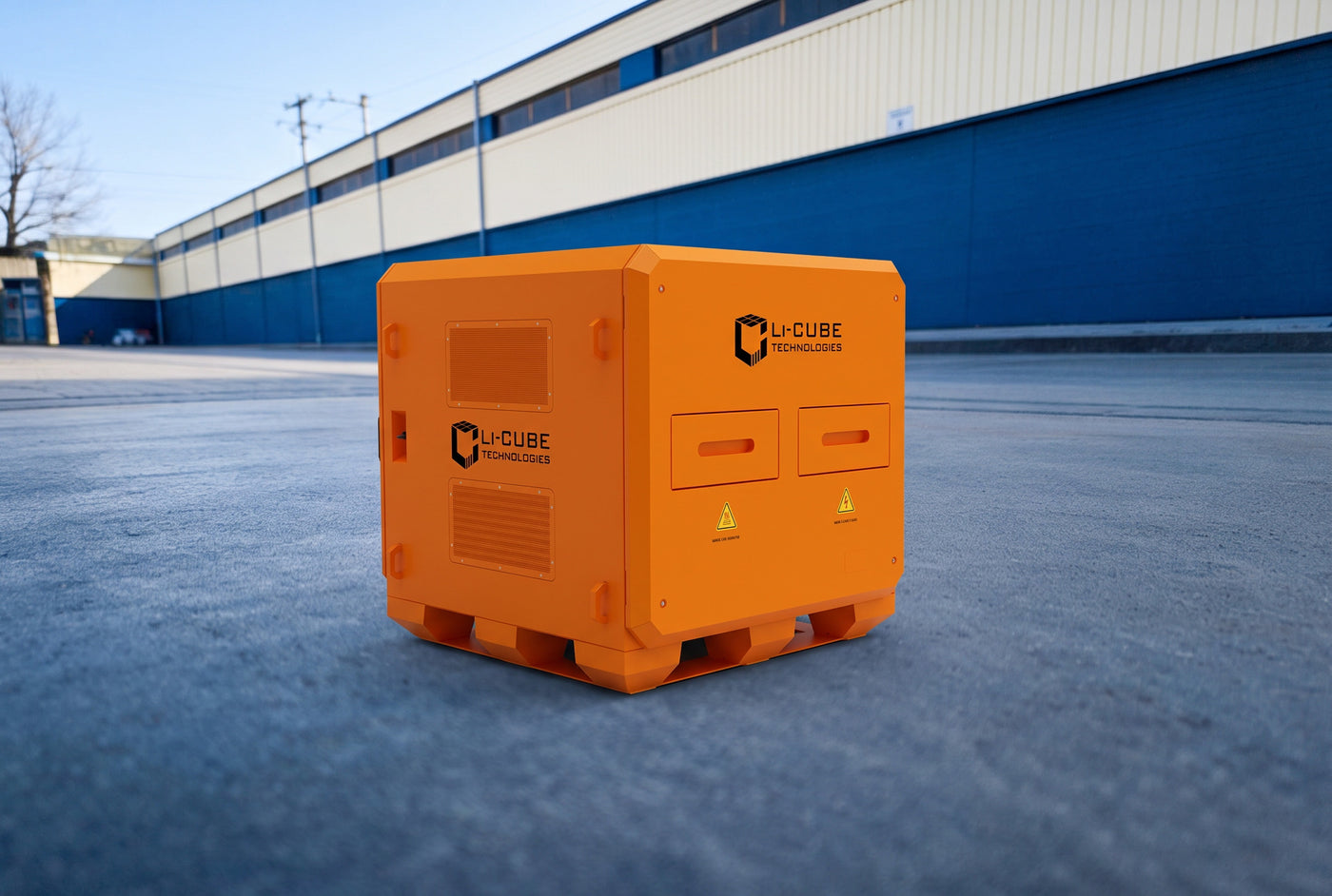

Up to 24 kW PV Input

Solar integration further reduces how often the generator needs to run, stacking with the battery bank to maximize fuel savings over the life of a deployment.

Up to 24 kW PV Input

Technical specifications

The numbers your engineer will ask for.

Solar Array
Max PV input (external solar)Up to 24 kW
Power Conversion & Monitoring
Inverter / PCS15 kW (UL1741 certified PCS)
Battery charger3.5 kW
AC input120/240V split-phase, 60Hz
Generator integrationDiesel generator communication ready
Battery System
Capacity32 kWh lithium
Chemistry / featuresLithium
Enclosure
Installation typePortable
Best for
Best forConstruction sites, temporary power, remote operations, events, industrial sites, replacing rental-generator-only setups
Need the full engineering package?
We'll walk you through the complete spec sheet, drawings and configuration options on a call.
Book a Consultation

WHAT'S INCLUDED

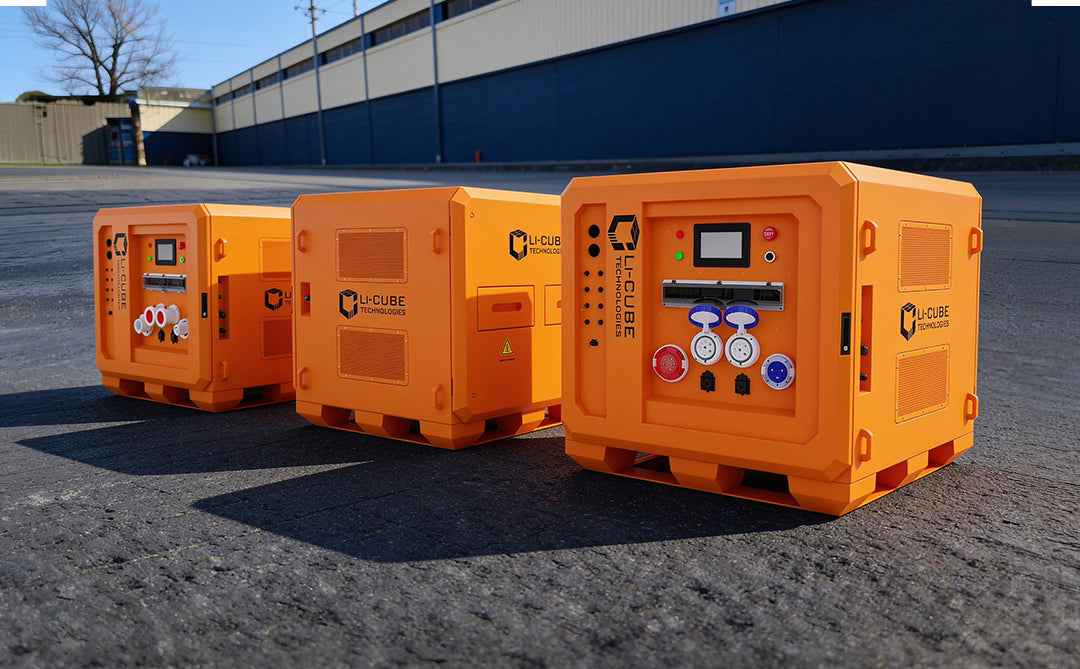

Everything you need, ready to deploy.

The Li-Cube1532 arrives as a complete hybrid power platform, inverter, battery bank, and controls included, ready to connect on site.
Everything you need, ready to deploy.
Power conversion & monitoring equipment
  • 15 kW inverter / PCS (UL1741 certified)
  • 32 kWh lithium battery bank
  • 3.5 kW battery charger
  • Diesel generator communication ready
Enclosure / container integration
  • Rugged, transportable enclosure (pre-wired)
  • TBD, insulation spec not provided

USE CASES

Built for power wherever the job takes you.

From construction sites to temporary events and industrial operations, the Li-Cube1532 delivers portable power anywhere it's needed.
Construction site powerRemote/industrial ops (mining, exploration)Telecom/infrastructureRemote facility or communityHybrid generator retrofit (diesel generator communication built in)Other / custom configuration

Common questions

Before you book the call.

How much fuel can this save compared to running a generator alone?+
Pairing the Li-Cube with a rental diesel generator can cut fuel consumption by up to 90%, depending on the application and load profile, because the generator only runs when the battery needs topping up or the load spikes.
How does the hybrid operation actually work?+
The 32 kWh lithium battery bank powers your load silently through the 15 kW inverter. The generator stays off until it's actually needed, during heavy demand or when the batteries run low, instead of idling continuously.
What size of load can it support?+
The system runs on a 15 kW inverter (PCS) with 120/240V split-phase output at 60Hz, suitable for construction sites, temporary power, remote operations, events and industrial applications.
Can I add solar panels to it?+
Yes, it accepts up to 24 kW of PV input, which further reduces reliance on the generator.
Is it certified for use on job sites?+
The PCS (inverter) is UL1741 certified.
When will it be available?+
The Li-Cube1532 is available soon from Li-Cube Technologies, contact us for current timing.
