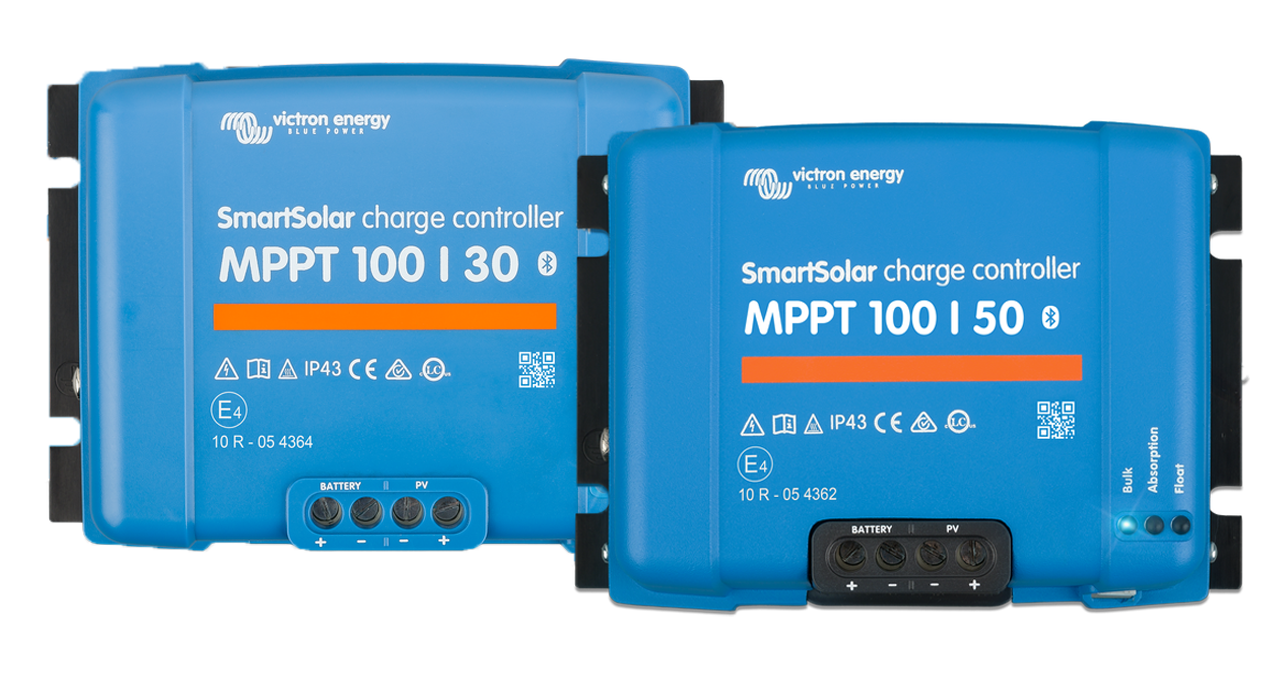

1 Victron Energy SmartSolar MPPT 100/30 + 1 Victron Energy SmartSolar MPPT 100/50

Gets connected between the photovoltaic modules and the batteries allowing the product to increase energy harvest out of the modules as efficiently as possible.



Key Features

  • Ultra-fast Maximum Power Point Tracking (MPPT)
  • Advanced Maximum Power Point Detection in case of partial shading conditions
  • Outstanding conversion efficiency with no fan cooling exceeding %98
  • Fully programmable charge algorithm with 8 pre-programmed algorithms, selectable with a rotary switch
  • Extensive electronic protection
  • Internal temperature sensor
  • Real-time data display using VictronConnect application.
  • 3 Charging stages: Bulk - Absorption - Float



The Victron SmartSolar Charge Controller has an ultra-fast Maximum power point tracking (MPPT) controller that improves the energy harvest by 30% compared to PWM controllers and by up to 10% compared to the slower MPPT controllers. Especially in the clouded sky when the light intensity is changing continuously.



Additional information:

  • Brand: Victron Energy
  • Charge-current-a: 50 and 30
  • DC-System-Voltage: 12 V
  • Height-1: 13
  • Length-1: 9
  • Lithium-compatible: Yes
  • Maximum-input-voltage: 100 V
  • Width-1: 20.5
